| 写真 | 型式 | 本体材質 | 締圧力 | CAD図 | カタログ |
|---|---|---|---|---|---|
 |

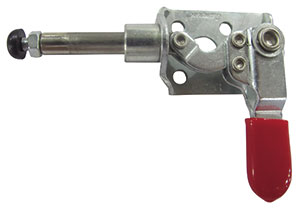

CH-301-CR | SS400 | 0.4kN(40kg) | ||
 |

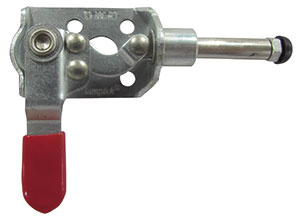

CH-301-CL | SS400 | 0.4kN(40kg) | ||
 |

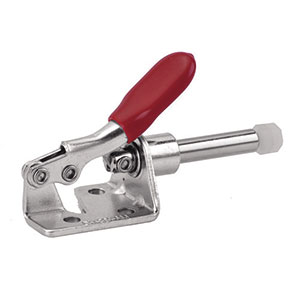

CH-301-AM | SS400 | 0.45kN(45kg) | ||
| CH-301-AMSS | SUS304 | ||||
 |

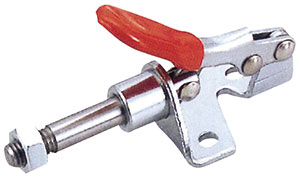

CH-301-BM | SS400 | 0.45kN(45kg) | ||
 |

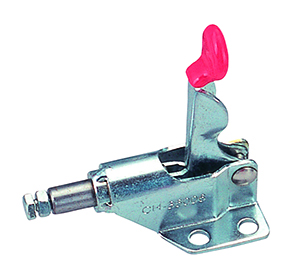

CH-36006 | SS400 | 0.5kN(50kg) | ||
 |

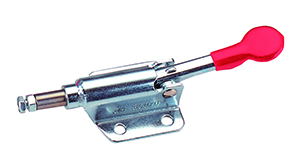

CH-36070 | SS400 | 0.5kN(50kg) | ||
 |

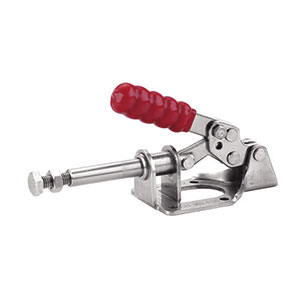

CH-302-FM | SS400 | 1.36kN(136kg) | ||
| CH-302-FMSS | SUS304 | ||||
 |
CH-302-DM | SS400 | 1.6kN(160kg) | ||
| CH-302-DMSS | SUS304 | ||||
 |

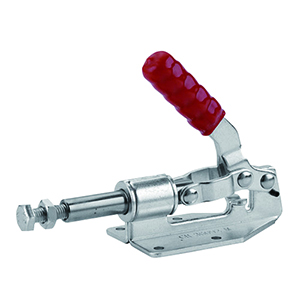

CH-36092M | SS400 | 1.8kN(180kg) | ||
 |

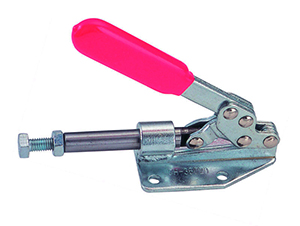

CH-36020 | SS400 | 1.8kN(180kg) | ||
 |

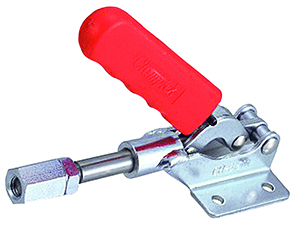

CH-31501 | SS400 | 2kN(200kg) | ||
 |

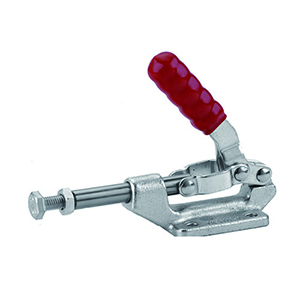

CH-36003M | SS400 | 2.72kN(272kg) | ||
 |

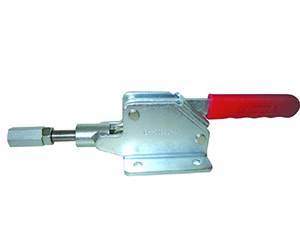

CH-30290M | SS400 | 2.95kN(295kg) | ||
 |

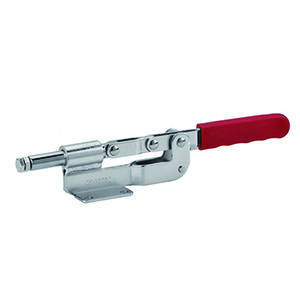

CH-36060 | SS400 | 3kN(300kg) | ||
 |
CH-30607M | SS400 | 3.18kN(318kg) | ||
 |

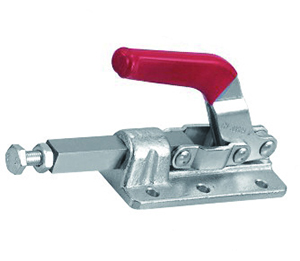

CH-30608M | SS400,SCM440 | 3.18kN(318kg) | ||
 |
CH-36010M | SS400 | 3.64kN(364kg) | ||
 |

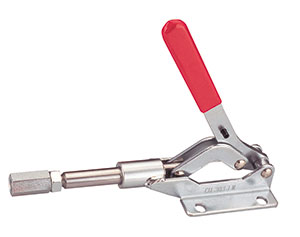

CH-303-EM | SS400 | 4.54kN(454kg) | ||
 |

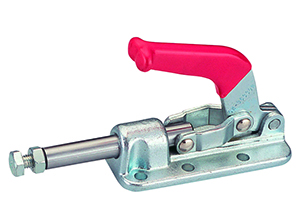

CH-36330M | SS400 | 11.36kN(1136kg) | ||
 |

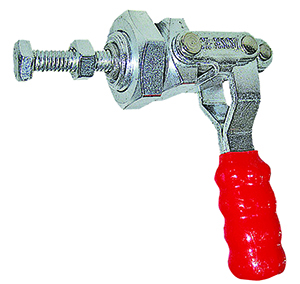

CH-36202M | SS400 | 0.91kN(91kg) | ||
| CH-36202MSS | SUS304 | ||||
 |

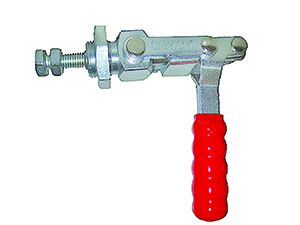

CH-36204M | SS400 | 1.36kN(136kg) | ||
| CH-36204MSS | SUS304 | ||||
 |

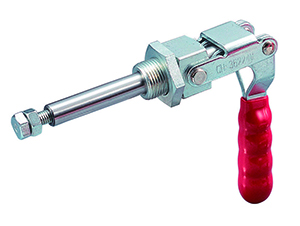

CH-36224M | SS400 | 3.18kN(318kg) | ||
| CH-36224MSS | SUS304 | ||||
 |

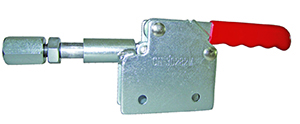

CH-30282M | SS400 | 1.6kN(160kg) | ||
 |

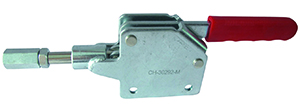

CH-30292M | SS400 | 2.95kN(295kg) | ||
 |
CH-36012M | SS400 | 3.64kN(364kg) | ||
 |

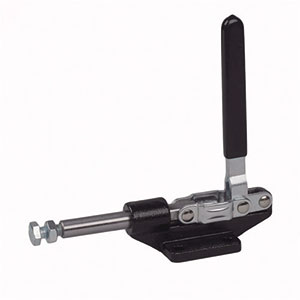

CH-305-BM | SCC5,SS400 | 1.8kN(180kg) | ||
 |

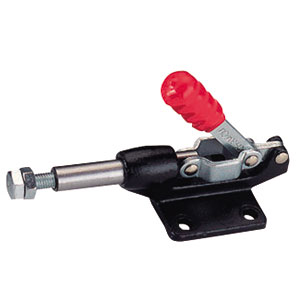

CH-304-CM | SCC5,SS400 | 2.27kN(227kg) | ||
 |

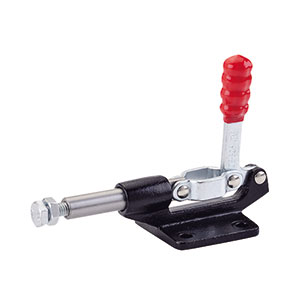

CH-305-CM | SCC5,SS400 | 2.27kN(227kg) | ||
 |

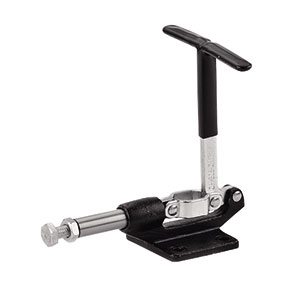

CH-305-CMT | SCC5,SS400 | 2.27kN(227kg) | ||
 |

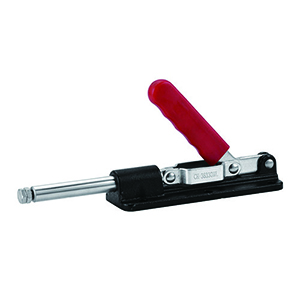

CH-36330ML | SCC5,SS400 | 3.5kN(350kg) | ||
 |

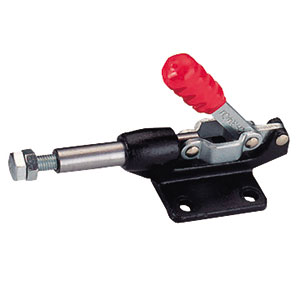

CH-304-EM | SCC5,SS400 | 3.86kN(386kg) | ||
 |

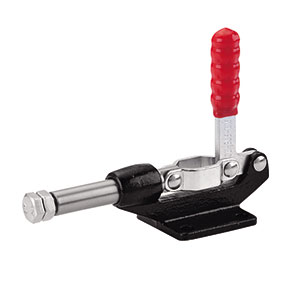

CH-305-EM | SCC5,SS400 | 3.86kN(386kg) | ||
 |

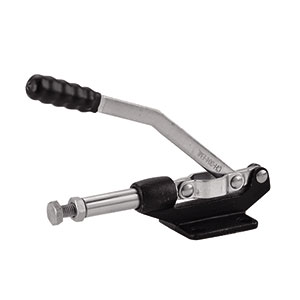

CH-304-EML | SCC5,SS400 | 3.86kN(386kg) | ||
 |

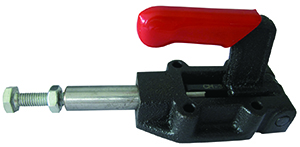

CH-30600 | SCC5,SS400 | 6kN(600kg) | ||
 |
CH-30600HL | SCC5,SS400 | 6kN(600kg) | ||
 |

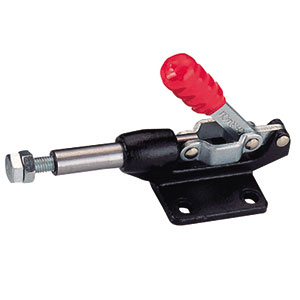

CH-304-HM | SCC5,SS400 | 6.8kN(680kg) | ||
 |

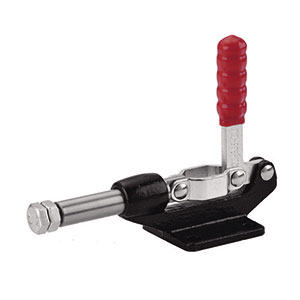

CH-305-HM | SCC5,SS400 | 6.8kN(680kg) | ||
 |

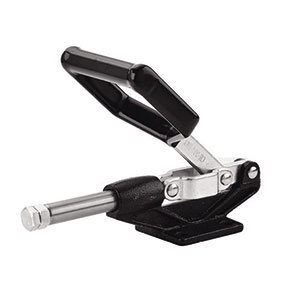

CH-304-HMY | SCC5,SS400 | 6.8kN(680kg) | ||
 |

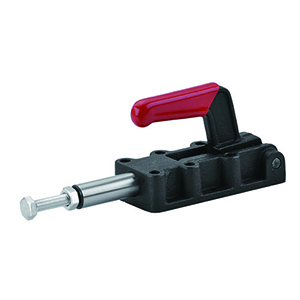

CH-31200 | SCC5,SS400 | 12kN(1200kg) | ||
 |

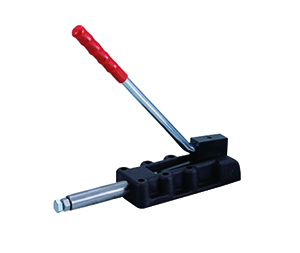

CH-31200HL | SCC5,SS400 | 12kN(1200kg) | ||
 |

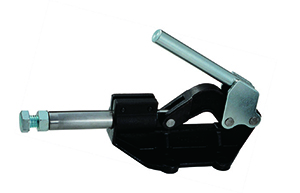

CH-30513 | SCC5,SS400 | 16kN(1600kg) | ||
 |

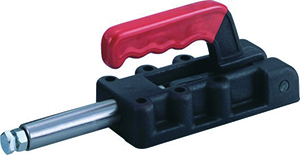

CH-32500 | SCC5,SS400 | 25kN(2500kg) | ||
 |

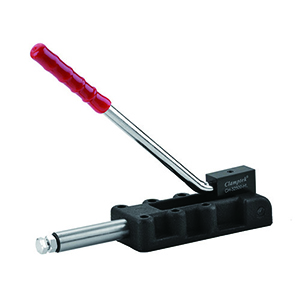

CH-32500HL | SCC5,SS400 | 25kN(2500kg) | ||
 |

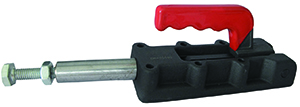

CH-35000 | SCC5,SS400 | 50kN(5000kg) | ||
 |
CH-30510M | SCC5,SS400 | 11kN(1100kg) | ||
 |
CH-30509M | SCC5,SS400 | 11.36kN(1136kg) | ||
 |
CH-30609M | SCC5,SS400 | 22.73kN(2273kg) | ||
 |
CH-30519M | SCC5,SS400 | 11.36kN(1136kg) | ||
 |
CH-30619M | SCC5,SS400 | 22.73kN(2273kg) | ||
 |

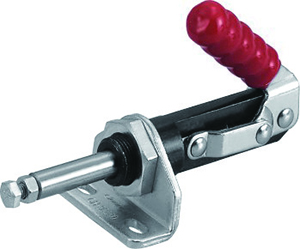

CH-30250 | SCC5,SS400 | 2.5kN(250kg) | ||
 |

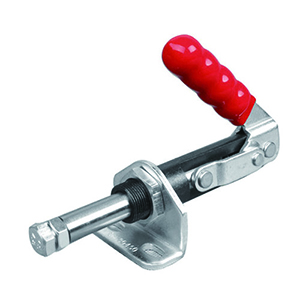

CH-30450 | SCC5,SS400 | 4.5kN(450kg) | ||
 |
CH-30511M | SCC5,SS400 | 11kN(1100kg) |
